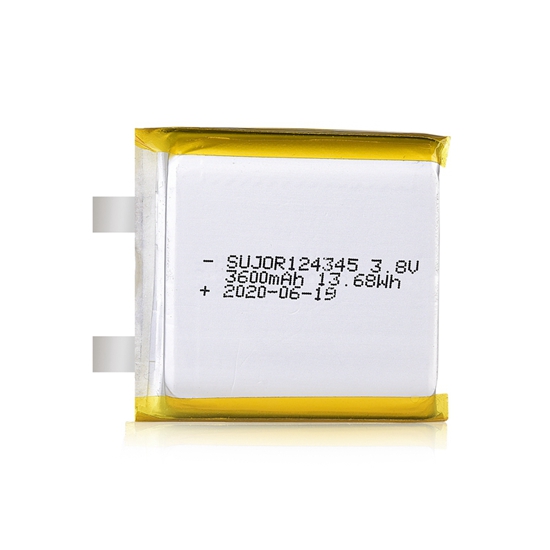

Li polymer battery 3.8V 124345 3600mAh

Model number: SUJOR 3.8V 124345 3600mAh

Nominal voltage:3.8V

Nominal capacity:3600mAh

Energy:13.68Wh

Dimension:12*43.0*45.0mm

Warranty: 1year


description
ItemRatingRemark
ModelSUJOR-LP124345 3600mAh12.0*43.0*45.0mm
Nominal capacity3600mAhStandard discharge(0.2C5A)after Standard charge
Nominal voltage3.8V
Cut-off charge voltage4.35V
Cut-off discharge voltage3.0V
Initial impedanceMax: 50mΩ
WeightApprox: 66g
Standard Charge0.2C CC(constant current) charge to 4.35V, thenCV(constant voltage 4.35V)till current decline to ≤0.01CCharge Time: Approx 7.0h
Max. Constant Charging Current3600mA(1.0C)
Standard DischargeDischarge at 0.2 C5A to 3.0V
Max. Continuous Discharging Current3600mA(1.0C)
Operating TemperatureCharge 0~+45ºC
Discharge -20~+60ºC
Storage Temperature-10~+55ºC≤1 month
-10~+45ºC≤3months
-10~+25ºC≤12months
Storage Humidity45-75%RH


Application field: Bluetooth headset, Portable speaker,Muti car jump starter , power bank ,Auto cleaner,GPS tracking, Digital ADSL device ,Flashligting , emergency lighting , laptop , solar board, ups power ,smart phone ,wireless microphone, MP3,Walk man, Cordless Phone, Notebook, Video Camera, Digital Camera, Digital Products, Portable DVD,Mobile Communication,  Electronic Toys,Game Player, Solar LED light, Emergency lighting , Power tools, E-bike, Medical Equipment,etc.


Main advantages:

● High energy density and high voltage of 3.8V

● Lighter and thinner, size could be flexible according to requirement

● Extremely safe, low self-discharge and has long cycle life

● Pollution-free, green product

● Wide operation temperature: -20ºC~60ºC


Certification:

Li polymer battery 3.8V 124345 3600mAh

Most of products are CE,RoHS,REACH,KC,IEC,CB,UL,BIS and UN38.3 approved.



FAQ

 Q1: Do you accept customized?

A: Yes, we are professional customized lithium battery provider. Share us voltage vs capacity vs dimension you want.



Q2: How many COTS models do you have?

A:More than 2000COTS cells are available. Customized is also welcomed. Tooling cost would be free of charge once it reaches the target quantity.



Q3: Could you offer free sample to test?

A: In general, we offer it for new customer after they pay the sample fee, and we will refund the sample cost for them when massive order is confirmed..


Q4: How about the shipping?

A: We have some good-cooperated shipping agents. They have much experience in shipping batteries. You can also use your own forwarder.



Q5: How many days will it take for the order?

A: It usually takes about 7~10working days if there is stock. For customized or if there is no stock, the lead time would be about 30~40working days for mass production.
