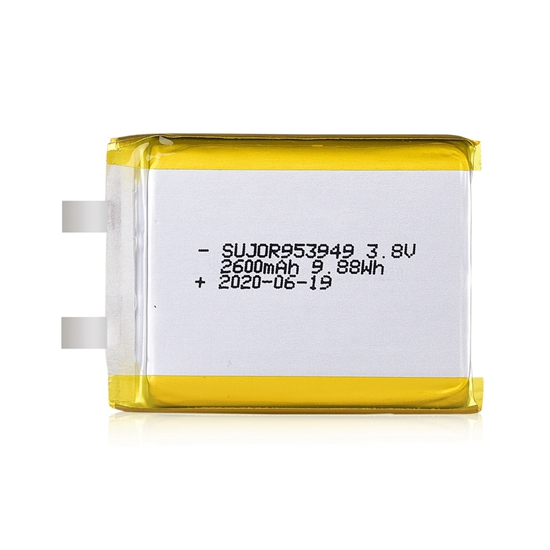

Model number: SUJOR 3.8V 953949 2600mAh
Nominal voltage:3.8V
Nominal capacity:2600mAh
Energy: 9.88Wh
Dimension: 9.5*39.0*49.0mm
Warranty: 1year
Item | Rating | Remark |
Model | SUJOR-LP953949 2600mAh | 9.5*39.0*49.0mm |
Nominal capacity | 2600mAh | Standard discharge(0.2C5A)after Standard charge |
Nominal voltage | 3.8V | |
Cut-off charge voltage | 4.35V | |
Cut-off discharge voltage | 3.0V | |
Initial impedance | Max: 50mΩ | |
Weight | Approx: 47g | |
Standard Charge | 0.2C CC(constant current) charge to 4.35V, thenCV(constant voltage 4.35V)till current decline to ≤0.01C | Charge Time: Approx 7.0h |
Max. Constant Charging Current | 2600mA(1.0C) | |
Standard Discharge | Discharge at 0.2 C5A to 3.0V | |
Max. Continuous Discharging Current | 2600mA(1.0C) | |
Operating Temperature | Charge 0~+45ºC | |
Discharge -20~+60ºC | ||
Storage Temperature | -10~+55ºC≤1 month | |
-10~+45ºC≤3months | ||
-10~+25ºC≤12months | ||
Storage Humidity | 45-75%RH |
Application field: Bluetooth headset, Portable speaker,Muti car jump starter , power bank ,Auto cleaner,GPS tracking, Digital ADSL device ,Flashligting , emergency lighting , laptop , solar board, ups power ,smart phone ,wireless microphone, MP3,Walk man, Cordless Phone, Notebook, Video Camera, Digital Camera, Digital Products, Portable DVD,Mobile Communication, Electronic Toys,Game Player, Solar LED light, Emergency lighting , Power tools, E-bike, Medical Equipment,etc.
Main advantages:
● High energy density and high voltage of 3.8V
● Lighter and thinner, size could be flexible according to requirement
● Extremely safe, low self-discharge and has long cycle life
● Pollution-free, green product
● Wide operation temperature: -20ºC~60ºC
Certification:
Most of products are CE,RoHS,REACH,KC,IEC,CB,UL,BIS and UN38.3 approved.
FAQ
Q1: Do you accept customized?
A: Yes, we are professional customized lithium battery provider. Share us voltage vs capacity vs dimension you want.
Q2: How many COTS models do you have?
A:More than 2000COTS cells are available. Customized is also welcomed. Tooling cost would be free of charge once it reaches the target quantity.
Q3: Could you offer free sample to test?
A: In general, we offer it for new customer after they pay the sample fee, and we will refund the sample cost for them when massive order is confirmed..
Q4: How about the shipping?
A: We have some good-cooperated shipping agents. They have much experience in shipping batteries. You can also use your own forwarder.
Q5: How many days will it take for the order?
A: It usually takes about 7~10working days if there is stock. For customized or if there is no stock, the lead time would be about 30~40working days for mass production.
