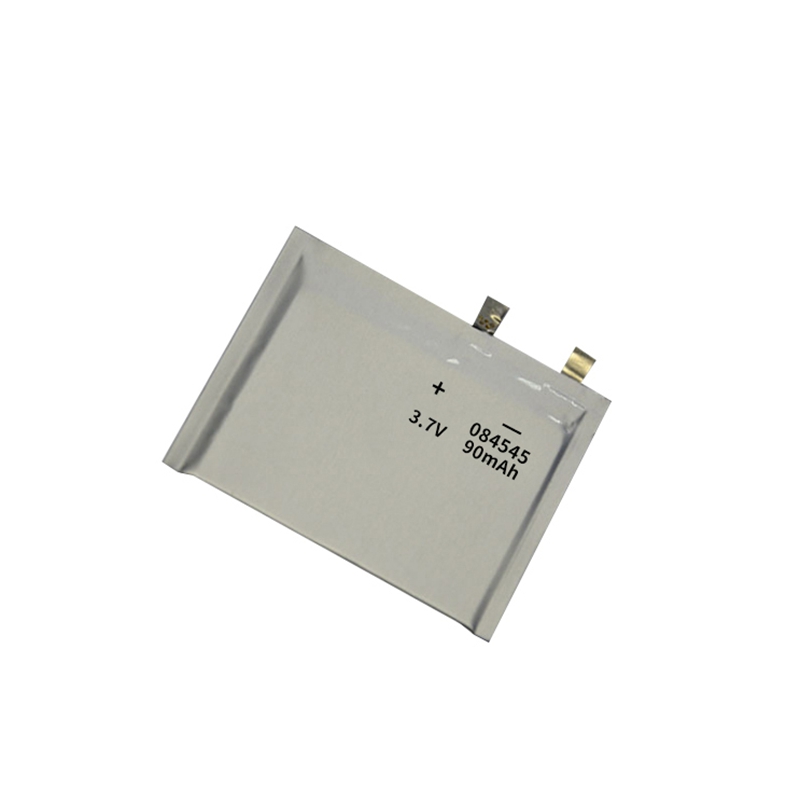

Ultra-thin Lithium polymer battery 3.7V 084545 90mAh

Model number: SUJOR 3.7V 084545 90mAh

Nominal voltage:3.7V

Nominal capacity:90mAh

Dimension: 0.8*45.0*45.0mm

Warranty: 1year

Characteristic: ultra-thin, ultra small


description
ItemRatingRemark
ModelSUJOR-LP084545 90mAh0.8*45.0*45.0mm
Nominal capacity90mAhStandard discharge(0.2C5A)after Standard charge
Nominal voltage3.7V
Cut-off charge voltage4.2V
Cut-off discharge voltage3.0V
Initial impedanceMax: 300mΩ
WeightApprox: 1.8g
Standard Charge0.2C CC(constant current) charge to 4.2V, thenCV(constant voltage 4.2V)till current decline to ≤0.01CCharge Time: Approx 7.0h
Max. Constant Charging Current90mA(1.0C)
Standard DischargeDischarge at 0.2 C5A to 3.0V
Max. Continuous Discharging Current90mA(1.0C)
Operating TemperatureCharge 0~+45ºC
Discharge -20~+60ºC
Storage Temperature-10~+55ºC≤1 month
-10~+45ºC≤3months
-10~+25ºC≤12months
Storage Humidity45-75%RH


Application field: Card reader



Main advantages:

● High energy density and high voltage of 3.7V

● Ultra-thin and ultra small

● Lighter and thinner, size could be flexible according to requirement

● Extremely safe, low self-discharge and has long cycle life

● Pollution-free, green product

● Wide operation temperature: -20ºC~60ºC


Certification:

Ultra-thin Lithium polymer battery 3.7V 084545 90mAh

Most of products are CE,RoHS,REACH,KC,IEC,CB,UL,BIS and UN38.3 approved.
