Home / Products / Lithium Ion Battery / li ion battery 17500 1100mAh 3.7V

li ion battery 17500 1100mAh 3.7V

Model number:3.7V 17500 1100mAh

Nominal voltage:3.7V

Nominal capacity:1100mAh


Warranty: 1year

ModelSUJOR-ICR17500 1100mAh17.5*50.5mm
Nominal capacity1100mAhStandard discharge(0.2C5A)after Standard charge
Nominal voltage3.7V
Cut-off charge voltage4.2V
Cut-off discharge voltage3.0V
Initial impedanceMax: 80mΩ
WeightApprox: 29g
Standard Charge0.2C CC(constant current) charge to 4.2V, thenCV(constant voltage 4.2V)till current decline to ≤0.01CCharge Time: Approx 7.0h
Max. Constant Charging Current1100mA(1.0C)
Standard DischargeDischarge at 0.2 C5A to 3.0V
Max. Continuous Discharging Current1100mA(1.0C)
Operating TemperatureCharge 0~+45ºC
Discharge -20~+60ºC
Storage Temperature-10~+55ºC≤1 month
Storage Humidity45-75%RH

Application field: lighting, flashlight, power tools, power station, electric bike, electric motorcycle, robots, medical and military devices, power bank, ect.

Main advantages:

● High consistency performance and low impedance.

● The battery has as long as 500cyle life. The capacity retention is about 70% after 500cycles.

● Warranty as long as 12months.

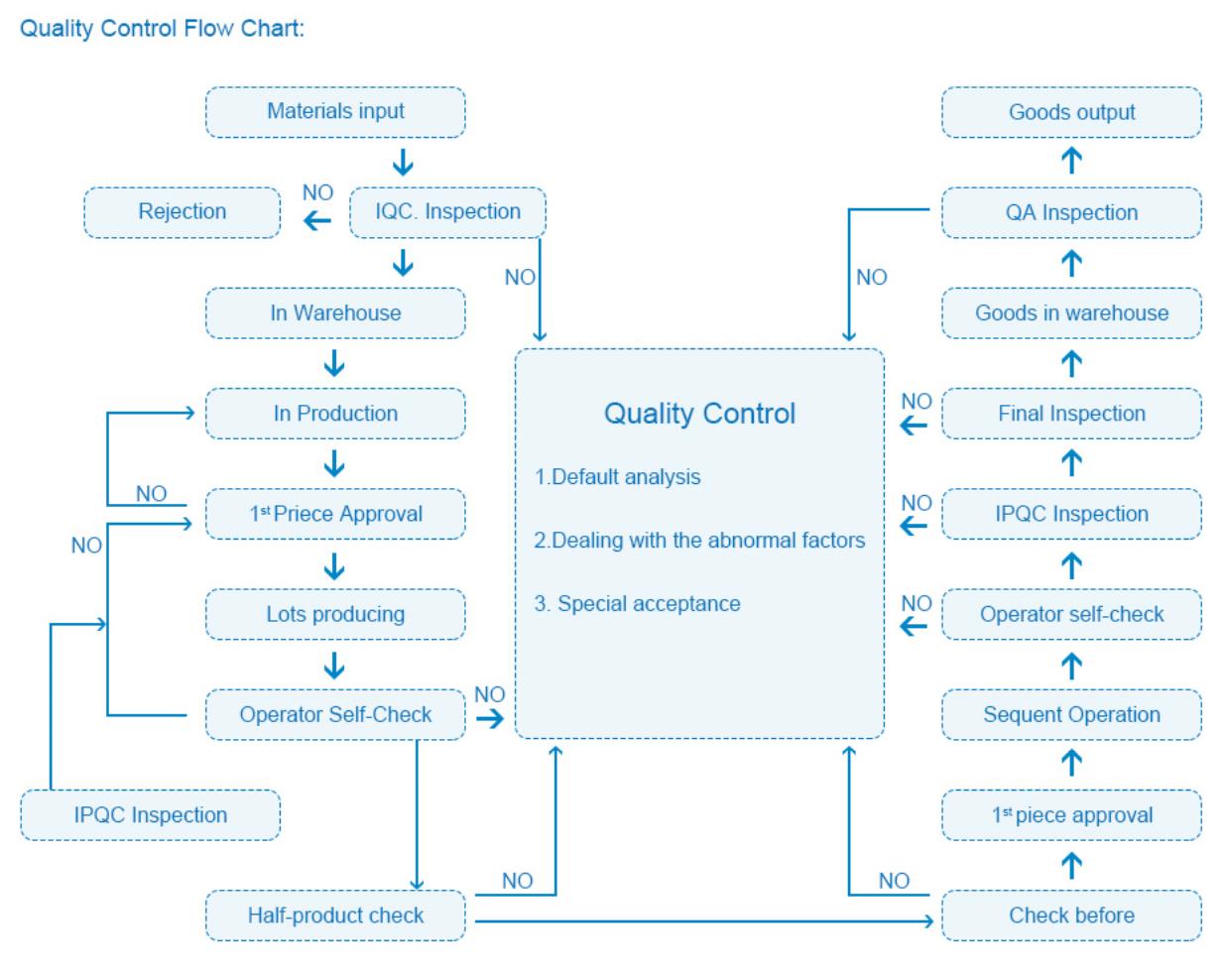

Quality control:

li ion battery 17500 1100mAh 3.7V


Q1: How to prolong battery life?

A: Put the battery in cool, dry, good ventilation place, avoid direct sunshine. For long time storage, the environment temperature should be below 30 centidegree. Do not use the battery or charge it under extremely high or low temperature.  Charge battery with correct charger, try to avoid over-charge, use the charger with good monitoring device and best to buy charger and battery kit. If the electrical equipment won’t be used for a long time, it is better to take out the battery or switch off it.

Q2: When can you deliver products?

A:We can deliver in 10-12 working days if there is stock. For customized battery, it may takes longer.

Q3: Could you offer free sample to test?

A: In general, we offer it for new customer after they pay the sample fee, and we will refund the sample cost for them when massive order is confirmed..

Q4: How about the shipping? A: We have some good-cooperated shipping agents. They have much experience in shipping batteries. You can also use your own forwarder.

Q5: How to store the li-ion battery?

A: Better to keep the battery at room temperature and lower at 65% humidity(cool and dry). It will help the battery store longer time.

Technical Support:
