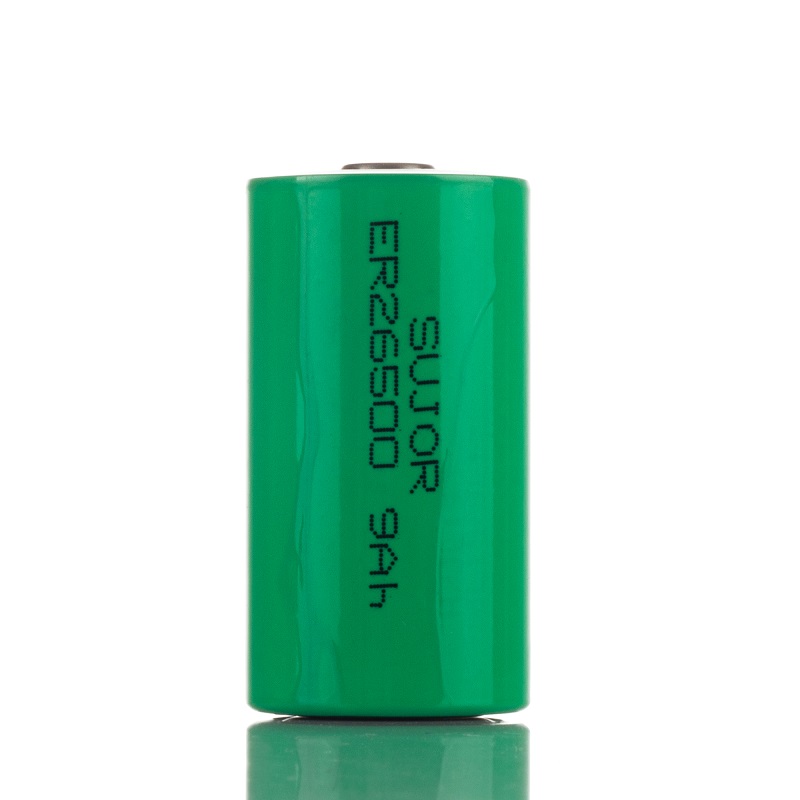

Model number: SUJOR ER26500 9000mAh
Battery chemistry: Lithium Thionyl Chloride (Li-SoCl2) Battery
Nominal voltage:3.6V
Nominal capacity: 9000mAh
Battery cell size: C
Dimension: 26.2*50.5mm
Shelf life: 10years
| Item | Rating | Remark |
| Model | SUJOR-ER26500 9000mAh | 26.2*50.5mm |
| Nominal capacity | 9000mAh | Discharge at 4mA, end voltage at 2.0V at 25°C |
| Nominal voltage | 3.6V | |
| Max. continuous discharge current | 150mA | |
| Max. pulse current | 300mA | |
| Weight | Approx: 55g | |
| Operating temperature | -60℃～＋85℃ | |
| Self-discharge rate | ≤ 1% | |
| Storage life | 10years |
Application field:
● CMOS circuit boards, AMR of common instruments, medical equipment,
● Marine electronic, air-sea-land weapon, GPS transceiver, ground sensor, artillery fuse
● Aerospace applications
● Various meter: water meter, electricity meter, IC card gas meter
● Safety devices: alarms, portable sensor monitoring device
● Burglar alarm, tire monitoring system, electronic memory device
Main advantages:
● Superior shelf life: It is proved to be more than 10years at room temperature.
● High energy type is bobbin structure and fit for low discharge rate applications.
● High power type is spiral structure and fit for high current discharge rate applications.
● High energy density,pollution-free and good safety performance
● Wide working temperature ranging from -60℃ to +85℃
● High reliability: The annual self-discharge rate is less than 1%.

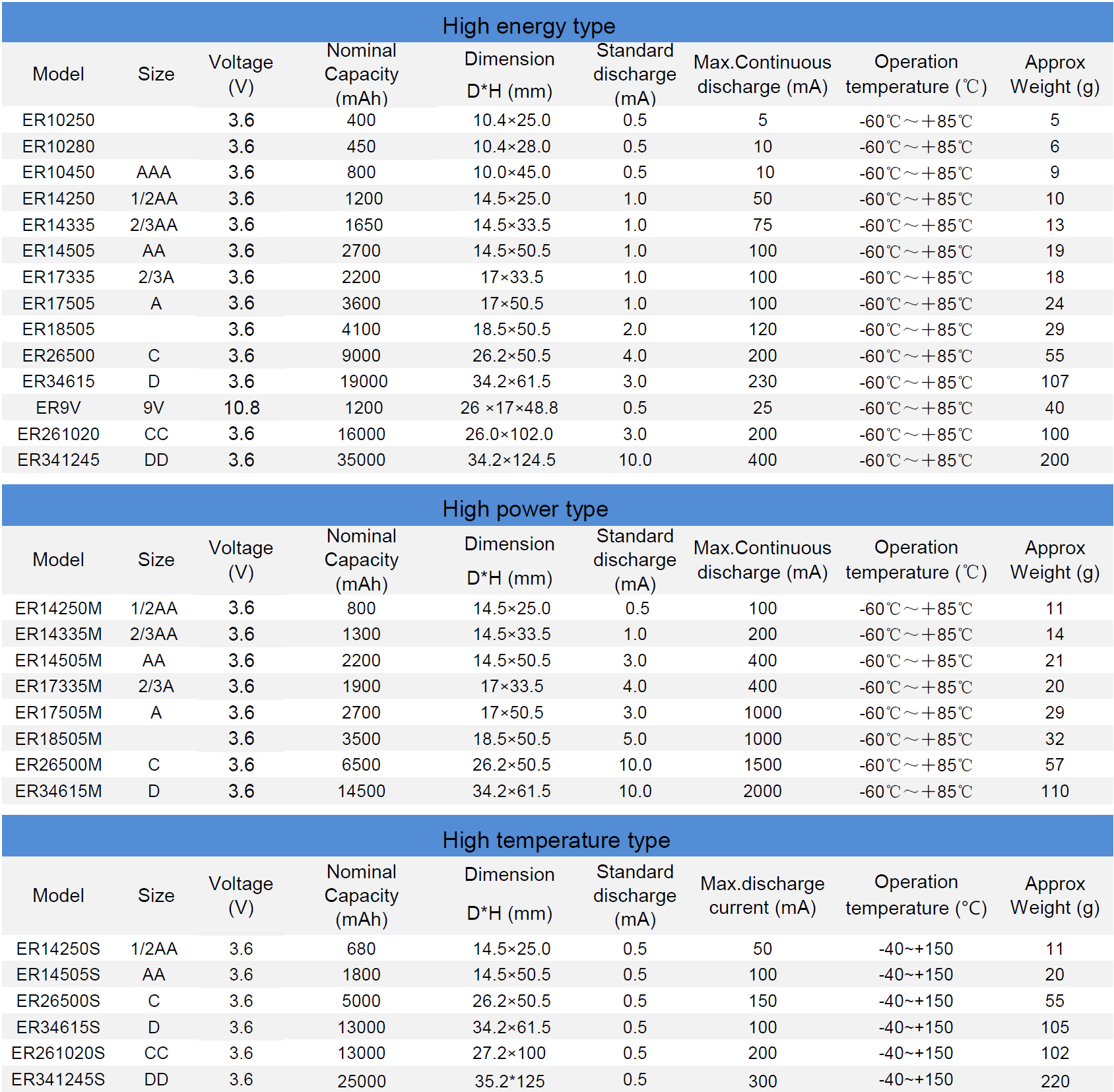

Main models:
