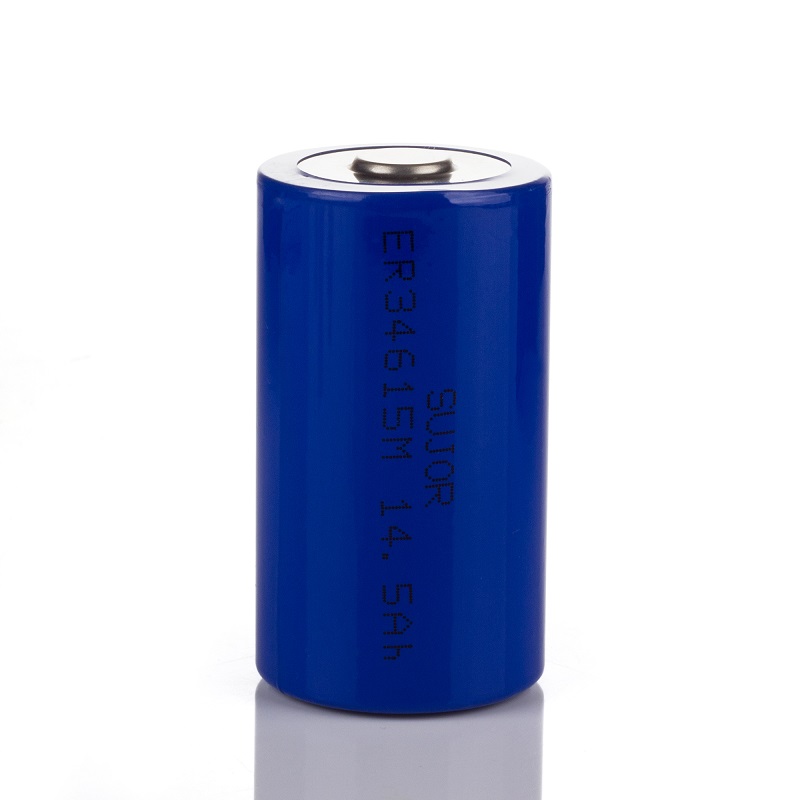

OEM ODM LiSOCl2 battery ER34615M 14500mAh 3.6V

Model number: SUJOR ER34615M 14500mAh

Battery chemistry: Lithium Thionyl Chloride (Li-SoCl2) Battery

Nominal voltage:3.6V

Nominal capacity: 14500mAh

Battery cell size: D

Dimension: 34.2*61.5mm

Shelf life: 10years

ModelSUJOR-ER34615M 14500mAh34.2*61.5mm
Nominal capacity14500mAhDischarge at 10mA, end voltage at 2.0V at 25°C
Nominal voltage3.6V
Max. continuous discharge current2000mA
Max. pulse current4000mA
WeightApprox: 102g
Operating temperature-60℃~+85℃
Self-discharge rate≤ 1%
Storage life10years

Application field:

● CMOS circuit boards, AMR of common instruments, medical equipment,

● Marine electronic, air-sea-land weapon, GPS transceiver, ground sensor, artillery fuse

● Aerospace applications

● Various meter: water meter, electricity meter, IC card gas meter

● Safety devices: alarms, portable sensor monitoring device

● Burglar alarm, tire monitoring system, electronic memory device

Main advantages:

● Superior shelf life: It is proved to be more than 10years at room temperature.

● High energy type is bobbin structure and fit for low discharge rate applications.

● High power type is spiral structure and fit for high current discharge rate applications.

● High energy density,pollution-free and good safety performance

● Wide working temperature ranging from -60℃ to +85℃

● High reliability: The annual self-discharge rate is less than 1%.

Main models:

SUJOR LiSOCl2 battery ER34615 19000mAh 3.6V
